From point to model.
Existing buildings rarely match their drawings. We scan what is actually there, to millimetre tolerance, and hand your team a Revit model they can design against without a single return visit to site.
A-01The problem
Every renovation begins with a drawing that lies.
Walls move. Slabs sag. Forty years of undocumented alterations sit between the archive drawing and the building you are standing in. Design against that drawing and you are designing against fiction, and the building will tell you so, on site, at the most expensive possible moment.
Archive drawingMeasured building
- 01
Clashes found on site
A duct that will not fit. A beam nobody drew. Discovered by a contractor with a crew standing idle, priced as a variation, and paid for by you.
- 02
Material cut to the wrong number
Every element fabricated from an inaccurate dimension is either re-cut or thrown away. Waste is not an environmental line item here — it is your margin, in a skip.
- 03
The return visit that never ends
Tape measure, photograph, forgotten dimension, drive back. Manual survey does not fail all at once; it fails one missing measurement at a time.
A-02Method
Dots, line, plan, model
The scanner records dots. A human reads a section and a plan in them. A model comes out. Scroll through four states of the same building: Maison Louis Carré, Alvar Aalto, 1959.
-

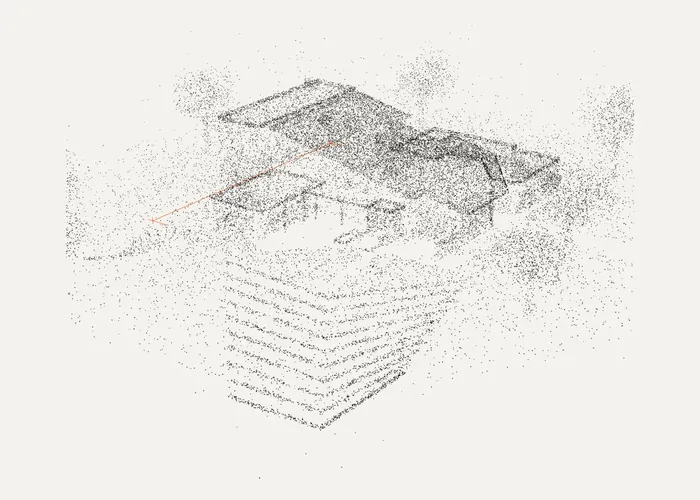

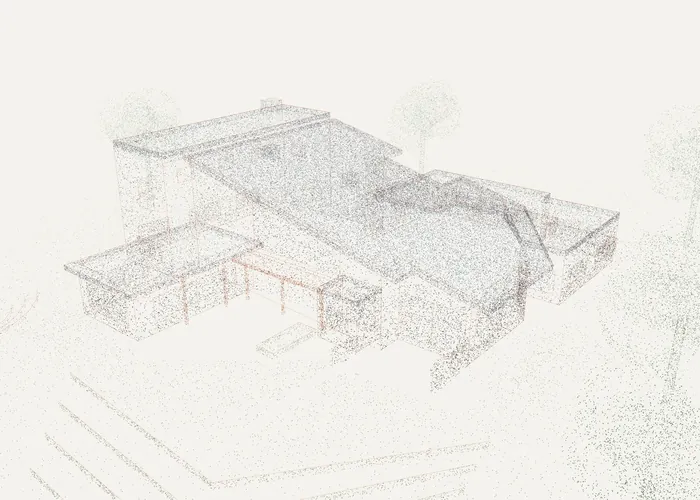

Several million measured points, unfiltered. No interpretation has happened yet. Every point is a real distance from the instrument to a surface.
-
Someone who knows buildings cuts the cloud and reads it: the slate roof falling with the hill, the wave of Aalto’s hall ceiling, the seven steps down to the living room.
-
Cut at one metre, the cloud becomes a plan: walls, openings, the hall, the bedroom wing, the stepped lawn. Measured on site, not traced from an archive drawing.
-
Parametric geometry built against the cloud. Walls that know they are walls, in your template, with your family library.
A-03Point cloud to BIM
Same building, twice

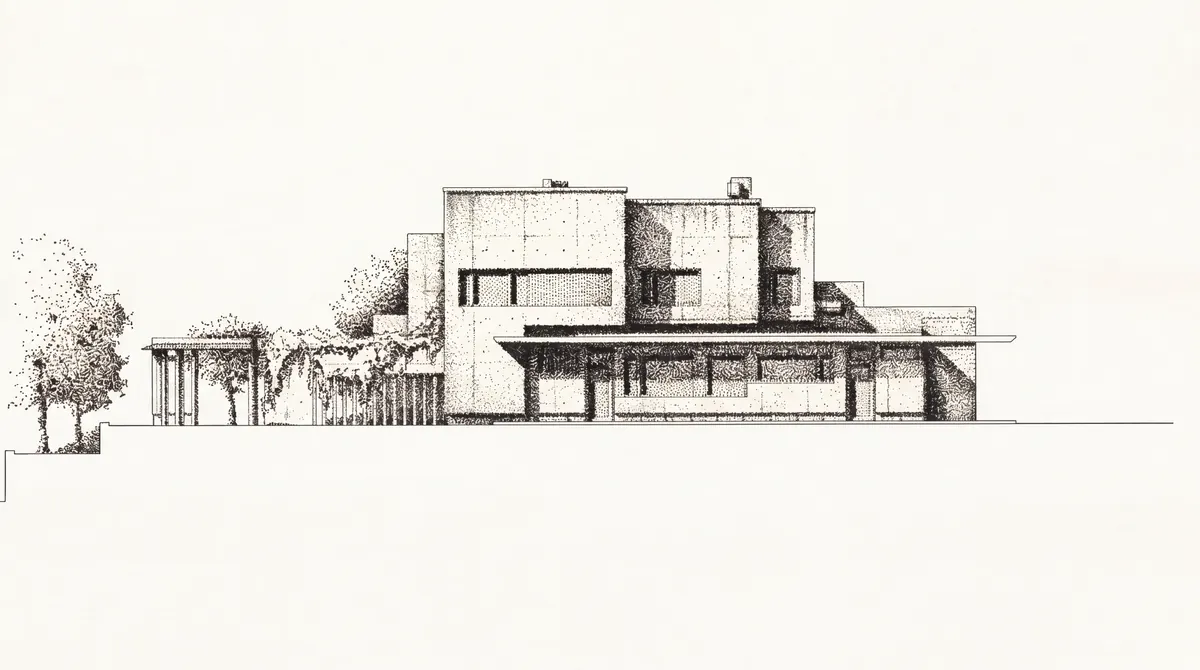

On the left, what the scanner recorded. On the right, what we hand over. Drag the divider. Nothing moves between them, because nothing was redrawn.

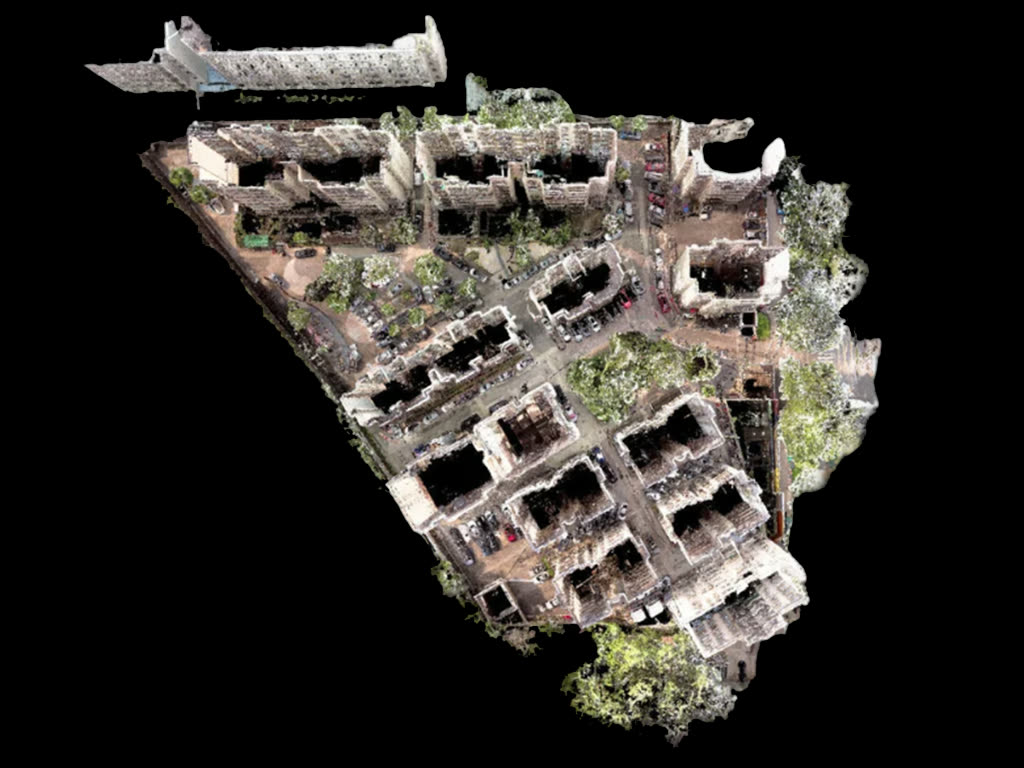

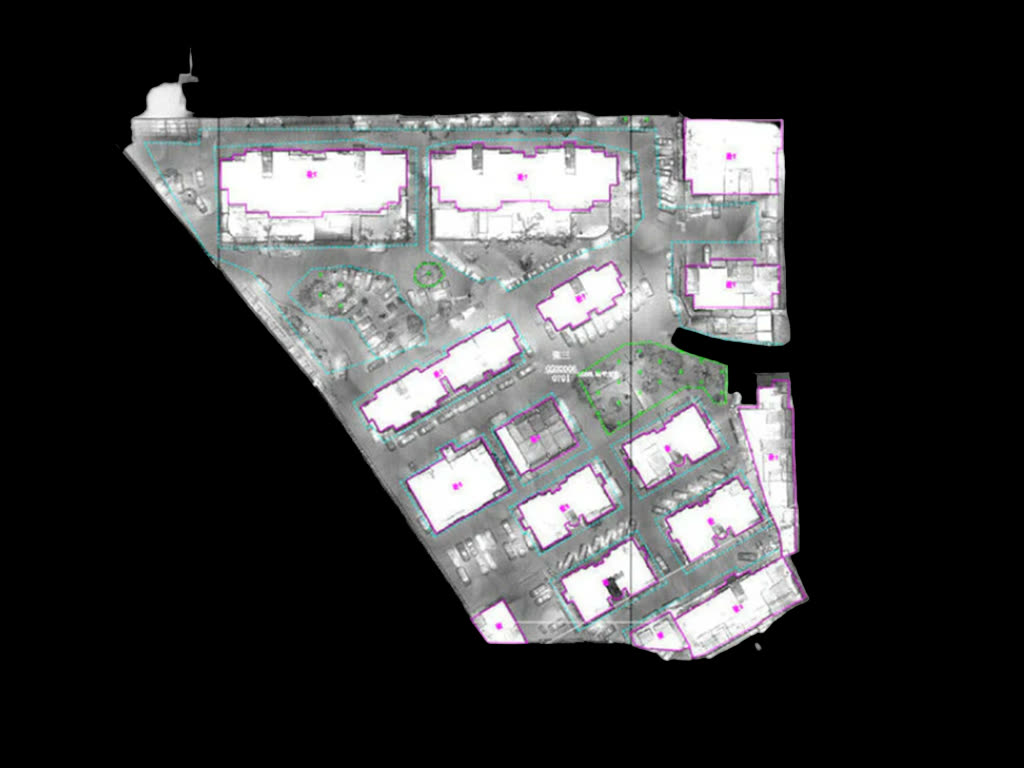

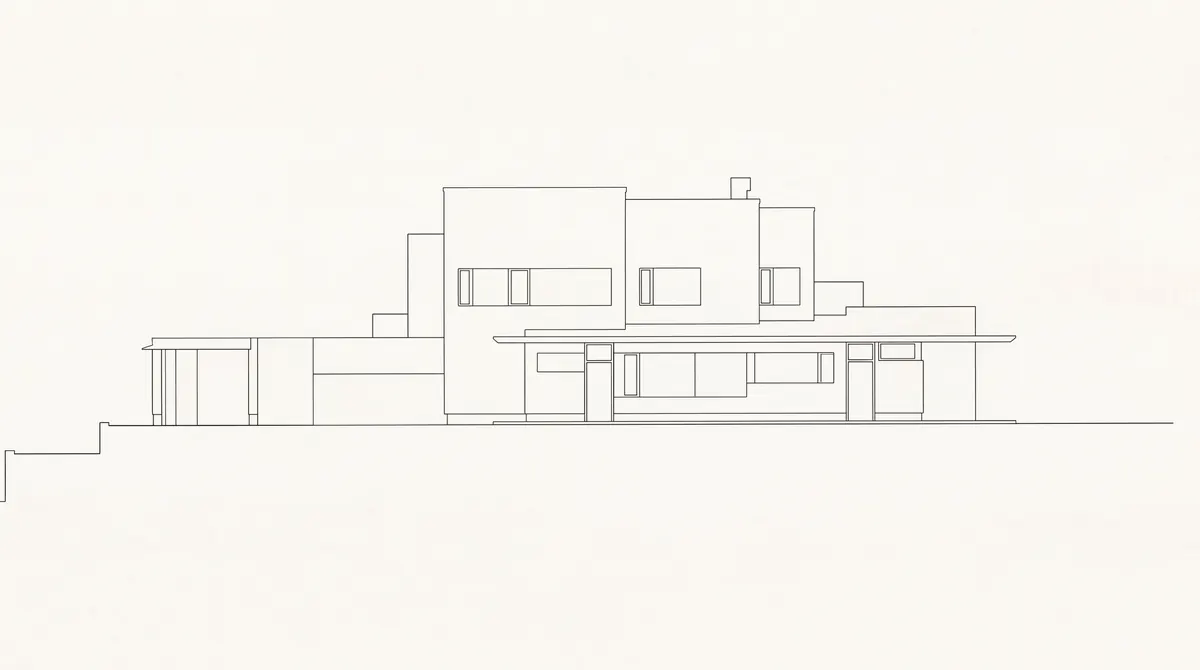

Same site, same viewpoint, same frame. The drawing on the right is extracted from the measurement on the left, not redrawn from it.
Sample data — not a client project
A-04Process
Four stages, from walk-through to model.
A single operator, one visit, no scaffold and no site shutdown. What used to be a fortnight of measuring is an afternoon of walking.
-
01 Capture
On site: hours, not weeks
Walk the building
Handheld SLAM LiDAR records the space continuously as the operator walks it. Drone photogrammetry covers roofs and façades that cannot be reached from the ground.
-
02 Register
Deliverable: E57 · RCP
Align and clean
Scans are registered into one coordinate system, georeferenced, and stripped of noise and passing people. You receive the deviation report, not just a promise.
-
03 Model
LOD 100 · 200 · 300 · 350
Build the geometry
Revit geometry modelled against the cloud to the agreed level of development, using your family library and naming conventions rather than ours.
-
04 Deliver
RVT · IFC · DWG · PDF
Hand it over
Native and open formats, drawings extracted, and a walkable model in your browser. Nothing is locked to software you do not own.
A-05Deliverables
What lands in your inbox
Agreed before we mobilise, itemised on the quote. No surprises about what a scan includes.
| No. | Deliverable | Format | Notes |
|---|---|---|---|
| 01 | Registered point cloud | E57 · RCP | The unedited measured record of the building, colourised and ready to open in Recap, Cyclone or Rhino. |
| 02 | Revit model | RVT | Native, parametric, built to your template and your family library. Walls, floors, structure, MEP as scoped. |
| 03 | openBIM export | IFC 4 | Software-neutral, so your consultants can work in ArchiCAD, Tekla or Solibri without a conversion argument. |
| 04 | Plans, sections, elevations | DWG · PDF | Extracted from the model, not redrawn. Dimensioned, titled and issued at the scale you asked for. |
| 05 | Visualisation | Enscape · V-Ray | Photoreal stills and walkthroughs off the as-built geometry, for planning submissions or for selling the scheme. |
| 06 | 360° site record | Panorama | A navigable photographic record of the building as found, timestamped. Settles arguments about what was there before. |
A-06Specification
Target specification
Instrument specification and modelling standard we build to. Per-project accuracy is reported on delivery.
- 01Relative accuracy±6 mm
Typical, over a closed loop. Reported per project.
- 02Point density≤ 5 mm
Spacing at 5 m range. Decimated on request for lighter files.
- 03Daily coverage3,000 m²
Single operator, occupied building, no shutdown required.
- 04Point cloud delivery48 h
From leaving site to registered, cleaned cloud in your hands.
- 05Model delivery5–15 days
By area and level of development. Fixed on the quote, not estimated.
- 06Level of development100–350
LOD 200 suits most refurbishment. LOD 350 where fabrication follows.
- 07Coordinate systemKRGJSH / WGS 84
Or your project grid, if you have one established.
- 08Archive retention10 years
Your raw data stays recoverable. Re-issue at any time.
A-07Technology
Instruments and software.
Capture hardware is only half of it. The value is in what happens between the point cloud and the model, and that is a modelling problem rather than a scanning one.
Capture
- Handheld SLAM LiDAR
- UAV photogrammetry
- 360° imaging
- Ground control
Mobile mapping covers ground the tripod cannot reach: stairwells, plant rooms, corridors, whole floors in one continuous pass.
Modelling & delivery
- Revit
- Rhino
- Grasshopper
- Dynamo
- Enscape
- V-Ray
- Recap
- Cyclone
Grasshopper and Dynamo automate the repetitive part of scan-to-model, which is how a small studio delivers at the pace of a large one.
Where it goes
-

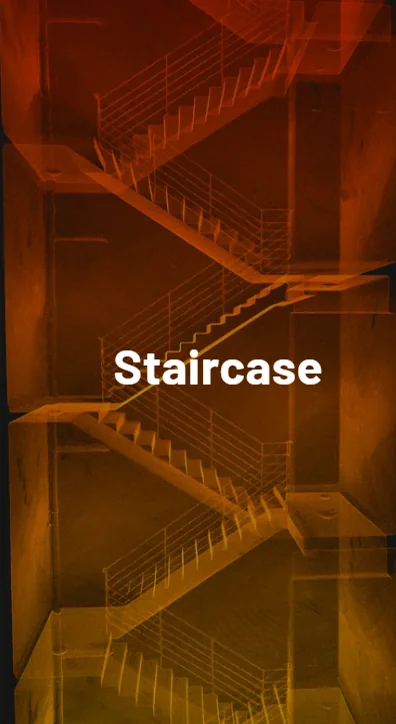

Stairwells and vertical coresContinuous capture, no set-ups -

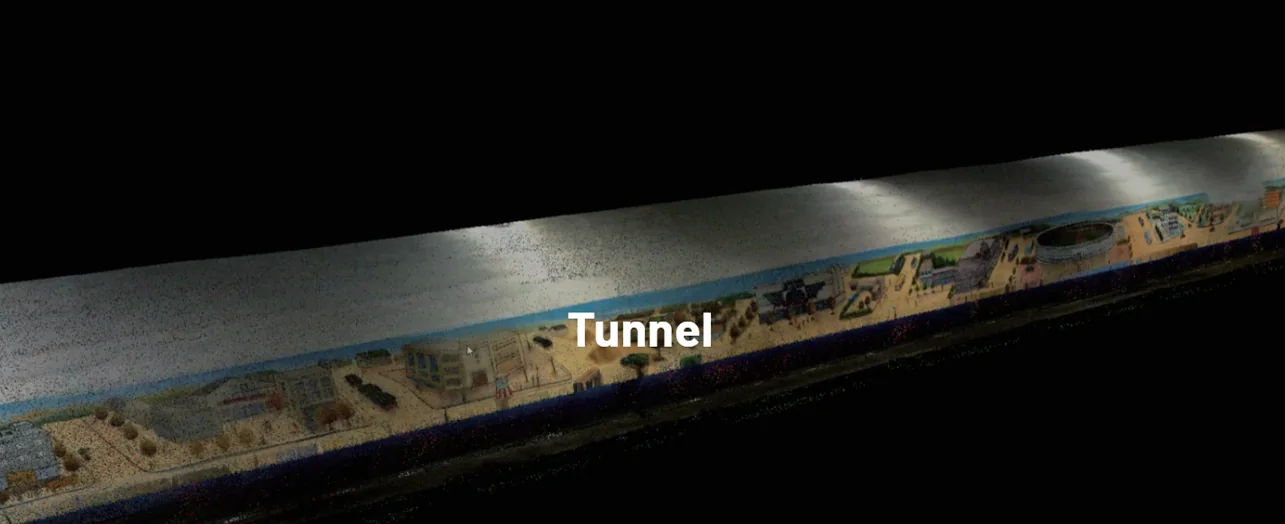

Tunnels and servicesNo GNSS required underground -

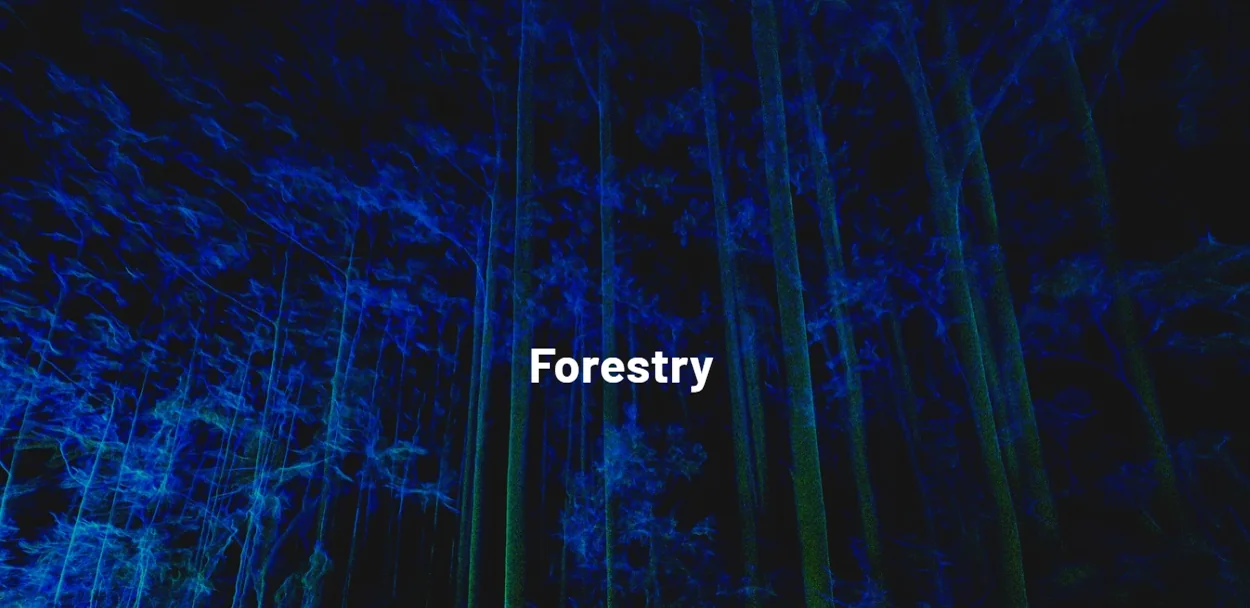

Sites and terrainVegetation classified and stripped
